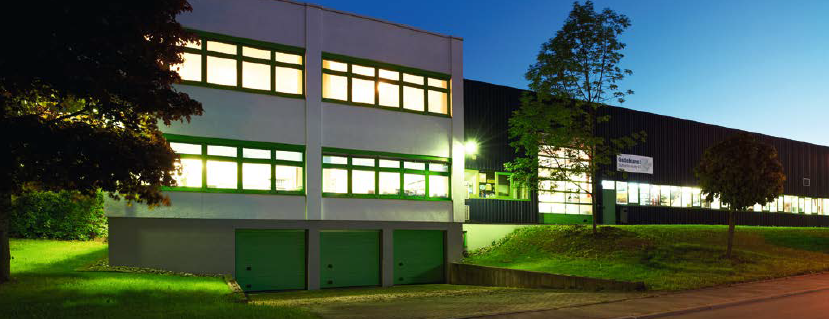

THE HOME OF STATE-OF-THE-ART SPRING TECHNOLOGY
Gutekunst Formfedern GmbH, Siemensstraße 11, D-72285 Pfalzgrafenweiler
■ Founded in 1990
■ Managing Director: Hagen Gutekunst
■ Family business in 2nd generation
■ Number of employees: 100 (status 2015)

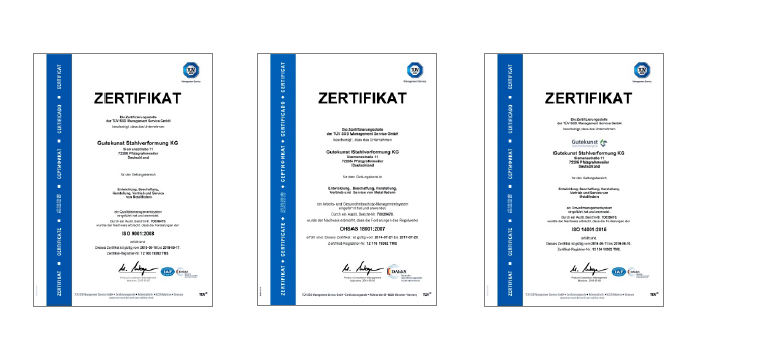

CERTIFIED TO ENSURE YOUR SECURITY
OUR PRODUCTS ACHIEVE CONTINUAL INDUSTRY RECOGNITION
EXACT MEASUREMENTS WITH CAD CONSTRUCTIONS
■ Development based on requirements profile
■ Processing of all CAD data formats in 2D und 3D
■ Drawings and samples
■ Transfer of all CAD data formats in 2D and 3D
INDIVIDUAL TOOLS FOR CHALLENGING SOLUTIONS
■ Design and construction of cutting, punching or stamping,bending, drawing and follow-on composite tools
■ Production of samples including parts
■ Appropriate tool concept for our machines
QUALTITY ASSURANCE
■ Incoming goods inspection
■ Test of parts ongoing production operation
■ Final inspection before the products are shipped
■ Certification in accordance with the European EFQM Directive
DIN EN ISO 9001:2000, 14001, OHSAS 18001
■ Uniform and consistente „PROFIT“ quality management system
SURFACE TREATMENTS
■ Electroplating
■ Electropolishing
■ Sand or shot grinding
■ Burnishing
■ Phosphating
■ Plastic coating
■ Nitriding

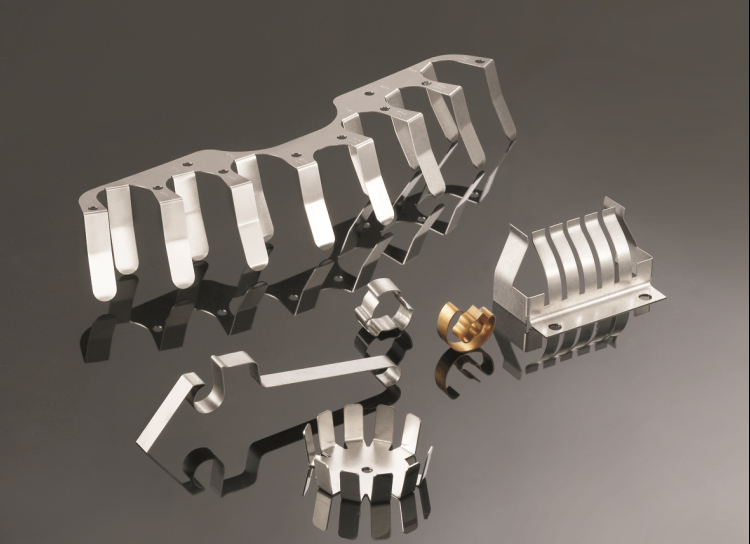

SHAPED SPRINGS, FLAT SPRINGS AND LEAF SPRINGS
TECHNICAL FEATURES:
■ Material thicknesses of 0.1 to 3.0 mm
■ Material widths of up to 150.0 mm
■ Made from all types of industrial steel
■ With laser marking
■ With final surface treatment
■ In small quantities and high volumes
■ Where requested, also with full process logging in compliance with industry guidelines

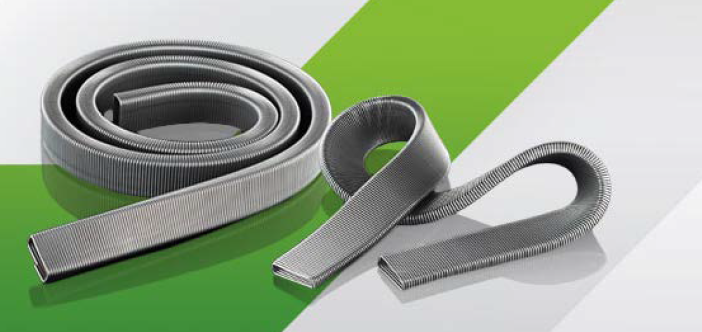

BOX SPRINGS TECHNICAL
TECHNICAL FEATURES:
■ In steel wire of up 1.0 mm
■ With the following limits in dimensions: Size BF to max. 20.0 mm
Size AF to max. 10.5 mm
Size LF to max. 1.000 mm
■ Using material 1.4310
■ In small and large quantities
■ Where requested, also with full process logging in compliance with industry guidelines

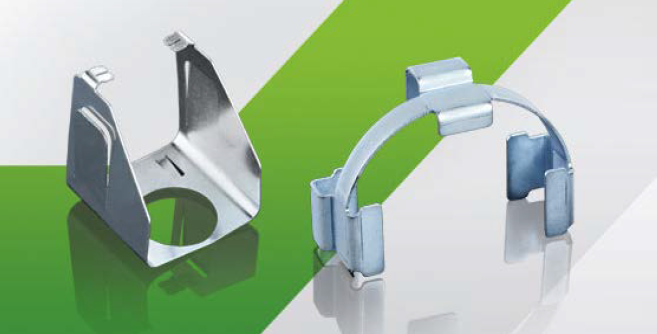

PUNCHED- AND BENT PARTS TECHNICAL
TECHNICAL FEATURES:
■ Material thicknesses of 0.05 to 3.0 mm
■ Material widths of up to 150.0 mm
■ Made from all types of industrial steel
■ With final surface treatment
■ In small and large quantities
■ Where requested, also with full process logging in compliance with industry guidelines

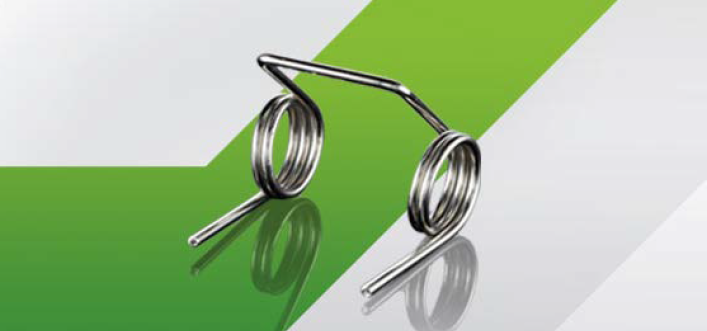

WIRE BENDING PARTS
TECHNICAL FEATURES:
■ In steel wire thicknesses from 0.2 to 4.0 mm
■ Made from all types of industrial steel
■ With final surface treatment
■ In small and large quantities
■ Where requested, also with full process logging in compliance with industry guidelines
LASER PARTS
TECHNICAL FEATURES:
■ Material thicknesses of 0.1 to 3.0 mm
■ Material widths provided on request
■ Made from all types of industrial steel
■ With laser marking and final surface treatment
■ In small and large quantities
■ Where requested, also with full process logging in compliance with industry guidelines

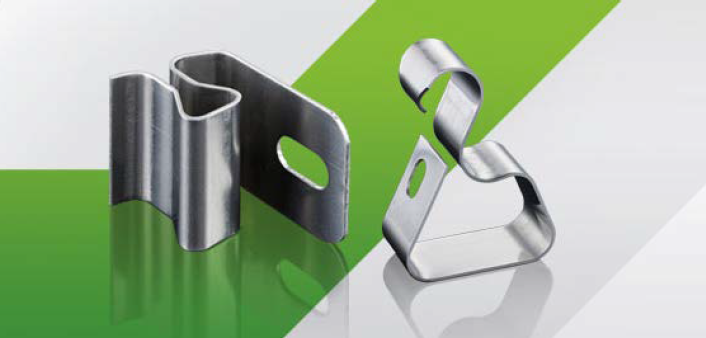

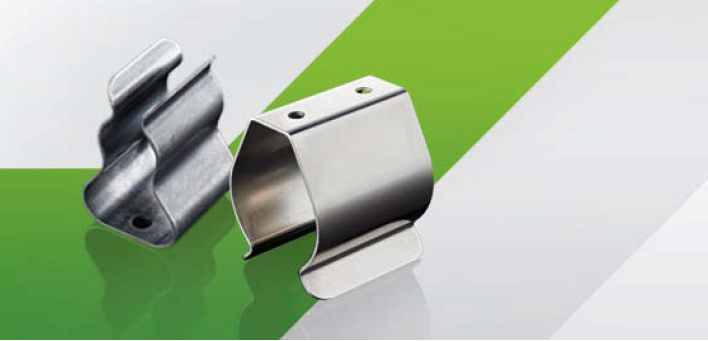

SPRING CLIPS
TECHNICAL FEATURES:
■ Material thicknesses to 3.0 mm
■ Material widths between 5.0 and 60.0 mm
■ Made from all types of industrial steel
■ With laser marking and final surface treatment
■ Materials from warehouse: CK 75 G (also with electroplated surface for an extra charge)
and 1.4310 (strainless steel)
■ In small and large quantities

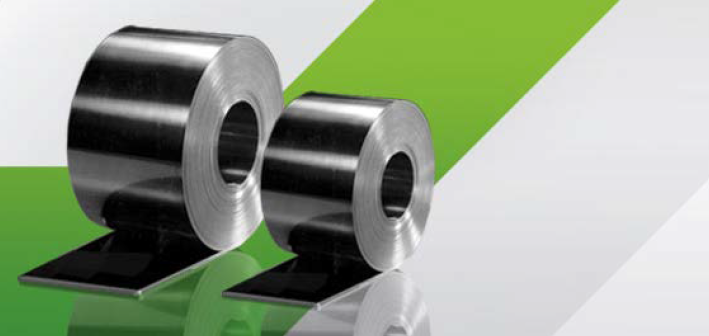

SPRING STEEL STRIP TECHNICAL
TECHNICAL FEATURES:
■ Band thicknesses from 0.1 to 3.0 mm
■ Material widths provides on demand
■ Made from materials: 1.4310, 1.4301, C75S, C100S, CuSn6, CuZn37 and CuBe2
■ Materials in stock come with strengths ranging from: 600 N/mm2 (soft), 1.600 und
1.800 N/mm2 (hard) and 1.500 bis 1.700 N/mm2 (stainless)
MACHINERY
■ Trumpf laser cutting machines
■ Bihler bending machines
■ Post CNC punching and bending centres
■ Wire-cut EDM machines

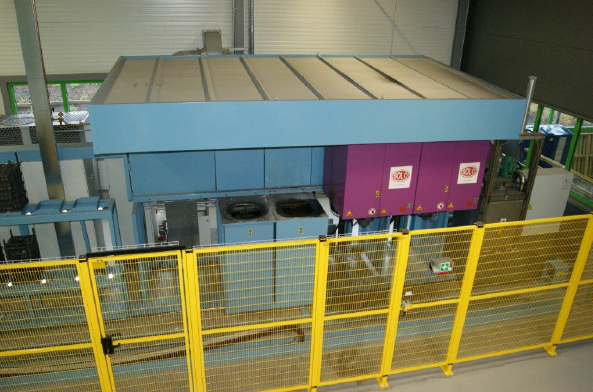

■ Hardening system Typ Profitherm 80 from SOLO SWISS
